Brief Overview of Compression Molding in the Rubber Industry
Compression molding is a widely used technique in the rubber industry, where preheated rubber is placed into a mold cavity and compressed under high pressure and temperature to form the desired shape.
Importance of Compression Molding in Various Applications
This molding process is crucial for producing rubber components in various applications such as automotive, aerospace, and consumer products, due to its versatility, cost-effectiveness, and ability to handle complex geometries.
Introduction to Microquick Engineers as a Leading Manufacturer of Compression Molding Machines
Microquick Engineers, a renowned manufacturer and exporter, offers the Vacuum Type Automatic Compression Rubber Moulding Machine, a state-of-the-art solution that brings efficiency, precision, and automation to the rubber industry, resulting in superior molded product quality and faster production cycles.
Compression Molding: Basic Concept
Compression molding is a widely used manufacturing technique in the rubber industry, where raw materials are converted into finished products through the application of heat and pressure. This process involves placing a pre-measured amount of rubber material, also known as a “charge,” into a heated mold cavity. The mold is then closed, and pressure is applied to force the material to conform to the shape of the mold. Once the material has cooled and solidified, the molded part is removed from the mold, ready for post-processing or use in various applications.
There are various molding techniques employed in the rubber industry, each with its unique advantages and disadvantages. Compared to other methods like injection molding and transfer molding, compression molding offers several benefits, such as lower tooling costs, simpler process, and suitability for large, intricate parts. However, it may not be ideal for producing parts with extremely tight tolerances or complex geometries. Microquick Engineers have developed a Vacuum Type Automatic Compression Rubber Molding Machine that combines the advantages of compression molding while addressing some of its limitations. The machine offers features such as improved part quality, faster cycle times, reduced waste, and enhanced process control compared to traditional compression molding methods.
Compression molding can be used with a wide range of materials, including thermosets, thermoplastics, and rubber materials. Commonly used rubber materials in compression molding include silicone, natural rubber, nitrile, and EPDM. The choice of material depends on the desired properties of the finished product, such as strength, flexibility, and resistance to heat, chemicals, or environmental conditions. By understanding the properties and processing parameters of the selected material, manufacturers can optimize the compression molding process to achieve the desired product quality and performance.

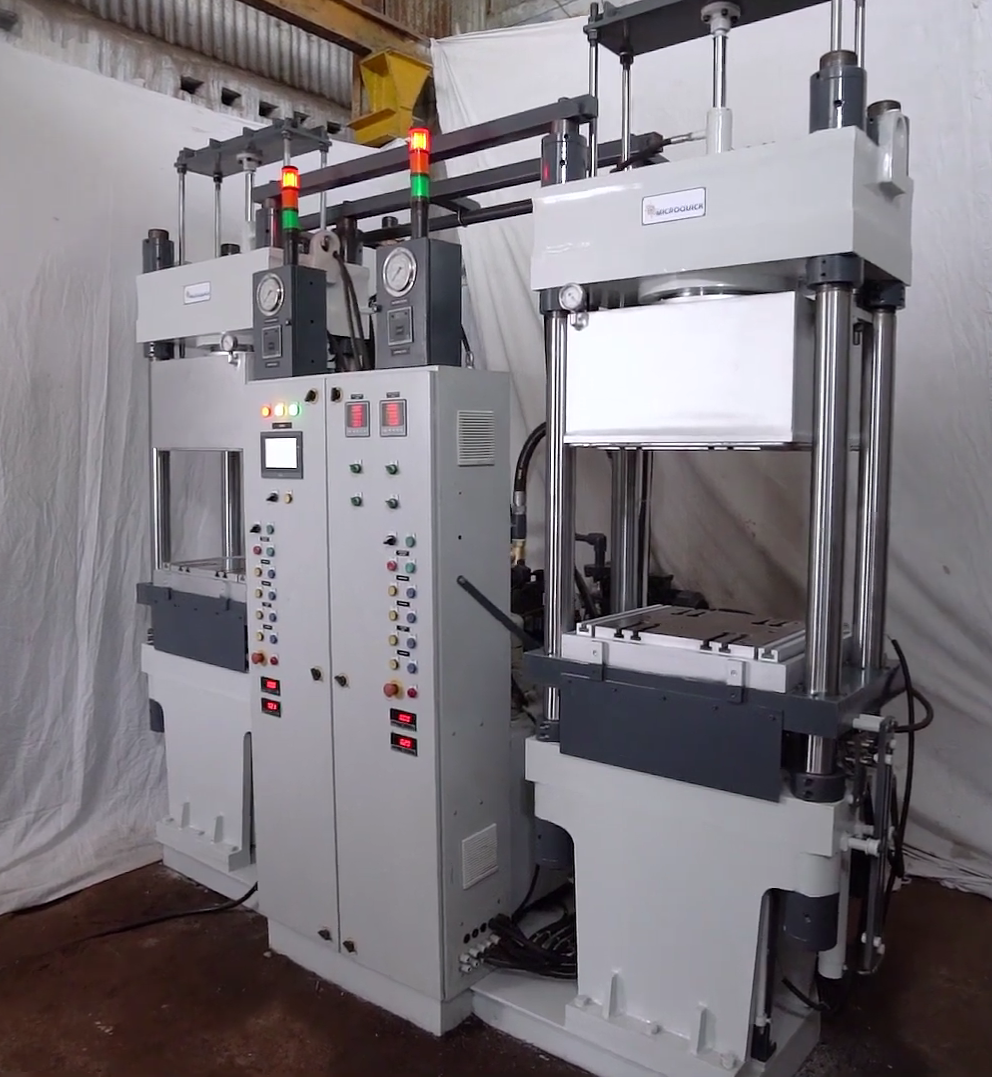

Vacuum Type Automatic Compression Rubber Molding Machine by Microquick Engineers
Microquick Engineers, a renowned manufacturer and exporter, specializes in Vacuum Type Automatic Compression Rubber Molding Machines. These machines are designed to address the specific needs of the rubber industry and offer numerous advantages for professionals in the field.
Overview of the machine and its features
The Vacuum Type Automatic Compression Rubber Molding Machine by Microquick Engineers boasts an array of technical features to cater to the rubber industry. The machine is built with alloy steel and a 4-tie bar, upward clamp stroke style mechanism, ensuring high precision of parallelism of platens. Its high-speed vacuum and efficient control system enable a seamless molding process. The machine also offers a proportionate hydraulics system for pressure and flow controls, allowing users to choose the parameters of pressure and speed of platen, vacuum cover, and ejection as required.
Advantages of using this machine in the rubber industry
Utilizing the Vacuum Type Automatic Compression Rubber Molding Machine by Microquick Engineers provides several key benefits to professionals in the rubber industry. These advantages include:
- Superior molded product quality by eliminating air entrapment and improving material flow
- Elimination of defects like air traps, voids, and short shots
- Consistent quality molding in terms of part dimensions, strength, improved surface finish, and enhanced overall product aesthetics
- No need for visual inspection of molded products
- Uniform heat distribution with PID temperature control
- Faster mold filling and reduced curing time, resulting in faster cycle time
Integration of automation and precise process control
The machine is equipped with PLC-HMI control for automatic operations and touch screen controls, making it user-friendly and efficient. The integration of automation and precise process control allows for efficient and consistent production of quality parts. The machine covers all parameters like pressure, speed, vacuum, curing, degassing, and ejection, enabling professionals to achieve improved part quality, faster cycle times , reduced waste, and enhanced process control compared to traditional compression molding methods.
The Compression Molding Process
In the rubber industry, the compression molding process is a crucial technique for creating high-quality rubber products. This section will discuss the various steps involved in this process, as well as how Microquick Engineers’ Vacuum Type Automatic Compression Rubber Moulding Machine enhances the process with its innovative features and advantages.
Preparing the Charge
The first step in compression molding is to prepare the charge, which is a pre-weighed amount of rubber material that will be placed into the mold. The charge should be formed into a shape that allows for easy loading and even distribution within the mold cavity. It is essential to ensure the material’s consistency and correct proportions for the desired product specifications.
Loading the Mold
Once the charge is prepared, it is loaded into the mold cavity, which has been designed to create the desired product shape. The mold is typically made of two halves, with one half containing the cavity and the other acting as a cover. It is crucial to align the mold halves accurately and securely before proceeding to the next step.
Applying Heat and Pressure
With the charge loaded into the mold, heat and pressure are applied to facilitate the material’s flow and cure. Microquick Engineers’ Vacuum Type Automatic Compression Rubber Moulding Machine offers precise control over pressure and temperature, ensuring uniform heat distribution and optimal material flow. This results in consistent product quality and eliminates defects such as air traps, voids, and short shots.
Cooling or Curing the Part
Once the material has been heated and pressurized, it undergoes a cooling or curing process, which solidifies the rubber into the desired shape. The Vacuum Type Automatic Compression Rubber Moulding Machine’s high-speed vacuum chamber encloses the heating platen, maintaining uniform heat to mold and enabling a significant reduction in cure time. This leads to faster mold filling and reduced curing time, ultimately resulting in a faster production cycle.
Releasing the Part from the Mold
After the part has been cooled or cured, it is carefully removed from the mold. The machine’s ram prefill system, with its two side cylinders, allows for a faster closing speed and ensures a smooth and efficient release of the molded part.
Trimming or De-flashing the Part
Once the part has been removed from the mold, it may require trimming or de-flashing to remove excess material and achieve the desired finish. The Vacuum Type Automatic Compression Rubber Moulding Machine’s precise process control results in reduced waste and improved overall product aesthetics.
Cleaning the Mold
The final step in the compression molding process is cleaning the mold to ensure it remains in optimal condition for future use. By maintaining a clean mold, you can prevent defects and ensure consistent, high-quality production of rubber products.
In conclusion, the compression molding process is essential in the rubber industry, and Microquick Engineers’ Vacuum Type Automatic Compression Rubber Moulding Machine offers numerous advantages for efficient and consistent production of high-quality parts. This innovative machine showcases the company’s commitment to providing state-of-the-art solutions for the rubber industry.
Types of Compression Molds
In the rubber industry, compression molding plays a vital role in manufacturing a wide range of products. To cater to the diverse requirements of different applications, there are various types of compression molds available, each with its unique advantages and functionalities. This section will discuss three major types of compression molds: Flash molds, Positive molds, and Semi-Positive molds.
Flash molds
Flash molds, also known as open molds, are the simplest and most commonly used type of compression molds. They consist of two halves with a cavity that forms the shape of the desired product. The rubber material is placed in the cavity, and the mold is closed, causing the excess material to flow out, creating a thin flash around the product. Flash molds are typically used for manufacturing simple and less intricate rubber products. They offer a cost-effective solution for low-volume production and prototyping but may require additional labor for trimming the flash after molding.
Positive molds
Positive molds, also known as closed molds, have a more precise and intricate design compared to flash molds. They consist of two halves with a cavity and a core that fit together tightly, eliminating the need for flash. The rubber material is placed in the cavity, and the mold is closed, compressing the material without any excess overflow. Positive molds are ideal for manufacturing complex rubber products with tight tolerances and minimal flash. They provide better dimensional accuracy and improved surface finish, resulting in reduced post-processing requirements. Microquick Engineers’ Vacuum Type Automatic Compression Rubber Moulding Machine is designed to work efficiently with positive molds, ensuring superior molded product quality and eliminating defects like air traps, voids, and short shots.
Semi-Positive molds
Semi-Positive molds combine the features of both flash and positive molds. They have a cavity and a core that fit together with a slight gap, allowing a controlled amount of flash to be formed during the molding process. This type of mold offers a balance between the simplicity of flash molds and the precision of positive molds. It is suitable for manufacturing rubber products with moderate complexity and tolerances, requiring minimal post-processing. The Vacuum Type Automatic Compression Rubber Moulding Machine by Microquick Engineers can also be used with semi-positive molds, ensuring consistent quality molding in terms of part dimensions, strength, improved surface finish, and enhanced overall product aesthetics.
In conclusion, choosing the right type of compression mold is essential for achieving the desired product quality and manufacturing efficiency. Microquick Engineers’ Vacuum Type Automatic Compression Rubber Moulding Machine offers versatility and compatibility with various mold types, making it a valuable addition to the rubber industry. Its advanced features and automation capabilities ensure faster cycle times , reduced waste, and enhanced process control compared to traditional compression molding methods.
Compression Molding Materials
In the rubber industry, compression molding relies on a variety of materials to create parts and components for various applications. Each material has its unique properties and offers specific benefits. Let’s delve into the four primary categories of materials used in compression molding.
Thermosets
Thermosetting materials are widely used in compression molding due to their ability to retain their shape and mechanical properties when exposed to high temperatures. These materials undergo a chemical reaction when heated, creating a strong cross-linked structure that remains stable even after cooling down. Common examples of thermosets include epoxy, phenolic, and melamine.
Thermoplastics
Although less common than thermosets in compression molding, thermoplastics can also be used in some cases. These materials soften when heated and harden upon cooling, allowing for a reversible process that enables re-molding and recycling. Some examples of thermoplastics suitable for compression molding are polyethylene, polypropylene, and polyvinyl chloride (PVC).
Rubber materials
Rubber materials, such as natural rubber, synthetic rubber, and silicone, are the primary focus of compression molding in the rubber industry. Rubber materials offer excellent flexibility, durability, and resistance to various environmental factors, making them ideal for producing seals, gaskets, and other rubber components. Microquick Engineers, a leading manufacturer and exporter of Vacuum Type Automatic Compression Rubber Moulding Machines, leverages these properties to create high-quality rubber parts with their advanced machinery.
Composite materials
Composite materials combine the properties of two or more different materials to achieve improved performance and functionality. In compression molding, these materials often consist of a thermoset or thermoplastic matrix reinforced with fibers, such as glass, carbon, or aramid. These composites offer enhanced strength, stiffness, and resistance to wear and corrosion compared to their individual components, making them suitable for various demanding applications.
Insert Molding and Overmolding in Compression Molding
Two important techniques used in conjunction with compression molding are insert molding and overmolding. These methods offer additional benefits to the rubber industry, allowing for the production of more complex and innovative products. In this section, we will discuss the fundamentals of insert molding and overmolding, along with their respective advantages.
Explanation of insert molding and its benefits
Insert molding is a process where a pre-formed component, typically made of metal or plastic, is placed into the mold cavity before the rubber material is introduced. The rubber is then compressed around the insert, bonding the two materials together as it cures. This technique is particularly useful for creating parts that require a combination of different materials to achieve specific properties, such as enhanced durability, conductivity, or flexibility.
Some of the key benefits of insert molding include:
- Improved part strength and functionality due to the combination of materials.
- Reduced assembly time and costs, as multiple components can be molded together in a single process.
- Greater design flexibility, allowing for the creation of intricate and innovative products.
Explanation of overmolding and its benefits
Overmolding, on the other hand, involves molding a layer of rubber material over an existing component, typically made of a different material like metal or plastic. This technique is commonly used to add a soft, non-slip surface to a product, enhance its aesthetic appeal, or provide additional protection against environmental factors such as moisture or impact.
Some advantages of overmolding include:
- Enhanced product aesthetics, as overmolding can provide a visually appealing contrast between materials or add a textured surface for better grip.
- Improved functionality, such as adding a protective layer to prevent wear and tear or providing additional insulation against heat or electrical conductivity.
- Reduced production costs, as overmolding can eliminate the need for secondary assembly or finishing processes.
Both insert molding and overmolding can be effectively utilized with Microquick Engineers’ Vacuum Type Automatic Compression Rubber Moulding Machine, further extending the range of applications and benefits offered by this advanced equipment. As a leading manufacturer and exporter, Microquick Engineers provides a versatile solution for producing high-quality rubber products in various industries.
Advantages and Disadvantages of Compression Molding
Compression molding, particularly in the rubber industry, offers several benefits and drawbacks. It’s essential to understand these factors to make informed decisions on whether to implement this molding technique for various applications. This section will provide an overview of the advantages and disadvantages of compression molding and compare it with other molding techniques.
Overview of the Benefits and Drawbacks
Some of the key advantages of compression molding include:
- Cost-effectiveness: Compression molding requires lower tooling costs compared to other molding methods like injection molding.
- Material versatility: This molding technique can handle a wide range of materials, including thermosets, thermoplastics, rubber materials, and composite materials.
- Design flexibility: Compression molding can produce complex geometries and intricate parts with ease.
- Insert and overmolding capabilities: It allows for the integration of inserts and overmolding during the process, resulting in improved part functionality and aesthetics.
- Efficient production: Microquick Engineers’ Vacuum Type Automatic Compression Rubber Moulding Machine enables efficient and consistent production, ensuring high-quality molded products.
However, compression molding also has some drawbacks:
- Longer cycle times: Compression molding typically involves longer cycle times compared to other molding techniques like injection molding, potentially affecting production efficiency.
- Limited automation: While advancements like Microquick Engineers’ Vacuum Type Automatic Compression Rubber Moulding Machine have enhanced automation, traditional compression molding can be less automated compared to other methods.
- Material waste: Flash and excess material produced during compression molding can result in material waste, impacting cost-efficiency and sustainability.
Comparison with Other Molding Techniques
When comparing compression molding to other molding techniques, some differences become apparent. For example, injection molding offers faster cycle times and higher automation levels, but it requires higher tooling costs and may not be suitable for certain materials like thermosets. On the other hand, compression molding is more cost-effective, versatile, and capable of producing complex geometries, but it typically involves longer cycle times and limited automation. Therefore, the choice of molding technique depends on the specific requirements of a project, such as material, design, production volume, and budget constraints.
Industries and Applications of Compression Molding
Compression molding is a versatile and widely used process in various industries, thanks to its ability to create complex parts with a range of materials. In this section, we will explore some of the key industries that rely on compression molding and the applications it serves.
Aerospace Compression Molding
In the aerospace industry, compression molding is employed to create high-strength, lightweight components that can withstand extreme temperatures and pressures. These components include interior panels, engine components, and structural parts. The precision and consistency provided by Microquick Engineers’ Vacuum Type Automatic Compression Rubber Moulding Machine make it an ideal choice for manufacturing aerospace components that demand high quality and performance.
Automotive Compression Molding
Compression molding plays a crucial role in the automotive industry, where it is utilized to produce a wide variety of parts, such as seals, gaskets, hoses, and engine mounts. The speed, efficiency, and improved part quality offered by Microquick Engineers’ Vacuum Type Automatic Compression Rubber Moulding Machine allow automotive manufacturers to reduce production costs and enhance product performance, giving them a competitive edge in the market.
Medical Compression Molding
Medical devices and equipment often require precision and reliability, which makes compression molding a popular choice for manufacturing these components. From surgical tools to prosthetics, compression molding allows for the creation of intricate parts with tight tolerances, ensuring optimal functionality and patient safety. The uniform heat distribution and precise process control provided by Microquick Engineers’ Vacuum Type Automatic Compression Rubber Moulding Machine make it an excellent solution for medical applications.
Consumer Products Compression Molding
Compression molding is also widely used in the consumer products industry , where it is employed to create a diverse range of items such as footwear, electronics, and sporting goods. The versatility and cost-effectiveness of compression molding make it a popular choice for manufacturers seeking to create high-quality products at an affordable price. By utilizing Microquick Engineers’ Vacuum Type Automatic Compression Rubber Moulding Machine, consumer product manufacturers can benefit from faster cycle times , reduced waste, and enhanced overall product aesthetics.
Designing Compression Molded Parts
When designing compression molded parts, it is crucial to optimize the design for the compression molding process and have a thorough understanding of material properties and processing parameters. The following information delves into tips for optimizing design and the importance of material properties and parameters for a successful compression molding project.
Tips for optimizing design for compression molding
In order to achieve high-quality compression molded parts, designers should consider the following tips:
- Choose the appropriate materials for the specific application, taking into account properties such as durability, flexibility, and resistance to environmental factors.
- Design parts with uniform wall thickness to ensure even material flow and consistent curing times.
- Minimize undercuts and complex geometry, as they can lead to difficulties in the molding process and increase the likelihood of defects.
- Consider using draft angles and radii to facilitate part removal from the mold and reduce stress on the material.
- Design parts with adequate tolerances to account for potential variations in material shrinkage and expansion during the molding process.
By following these design tips, designers can ensure a more efficient compression molding process and produce high-quality parts with minimal defects. Microquick Engineers, a leading manufacturer and exporter of Vacuum Type Automatic Compression Rubber Moulding Machines, offers an advanced solution for compression molding, providing numerous advantages such as superior molded product quality, elimination of air entrapment, improved material flow, and reduced cure time.
Importance of understanding material properties and processing parameters
Understanding the material properties and processing parameters is vital in designing compression molded parts. Material properties such as viscosity, thermal conductivity, and elasticity can have a significant impact on the molding process, influencing factors like mold filling, curing time, and part quality.
Processing parameters, including temperature, pressure, and cycle time, need to be adjusted based on the material properties and part design to ensure optimal molding conditions. Failure to understand and adjust these parameters can result in defects, inconsistent part quality, and increased production costs.
In conclusion, optimizing design for compression molding and having a solid understanding of material properties and processing parameters is essential for producing high-quality compression molded parts. Utilizing advanced technology, such as Microquick Engineers’ Vacuum Type Automatic Compression Rubber Moulding Machine, can further enhance the molding process, resulting in superior product quality and increased efficiency.
Conclusion
In conclusion, compression molding remains a vital process in the rubber industry, playing a significant role in various applications. It offers advantages in terms of material usage, cost-effectiveness, and the ability to produce complex rubber components. The importance of using advanced compression molding machines , such as the Vacuum Type Automatic Compression Rubber Molding Machine by Microquick Engineers, cannot be overstated.
Microquick Engineers, a leading manufacturer and exporter, have developed the Vacuum Type Automatic Compression Rubber Molding Machine to provide several advantages in the rubber industry. These advantages include superior molded product quality, uniform heat distribution, faster mold filling and reduced curing time, resulting in a faster cycle time. This advanced machine offers integrated automation and precise process control, ensuring efficient and consistent production of high-quality parts.
As we have demonstrated, utilizing Microquick Engineers’ Vacuum Type Automatic Compression Rubber Molding Machine can significantly improve the overall quality and efficiency of rubber component production. To discover the full range of products and services related to rubber mixing and compression molding that Microquick Engineers has to offer, we encourage you to explore their website and take advantage of their expertise in this field.
